ATEQ Product List

The products below are examples of equipment that we have developed to fulfil a particular need, but you are welcome to contact us for any other process requirements:

• Apron Feeders
• Belt Feeders
• Vibrating Grizzly Feeders
• Vibrating Pan Feeders

• Stacking Conveyors
• Tripper Conveyors
• Material Extraction Systems
• Modular Crushing/Screening Systems

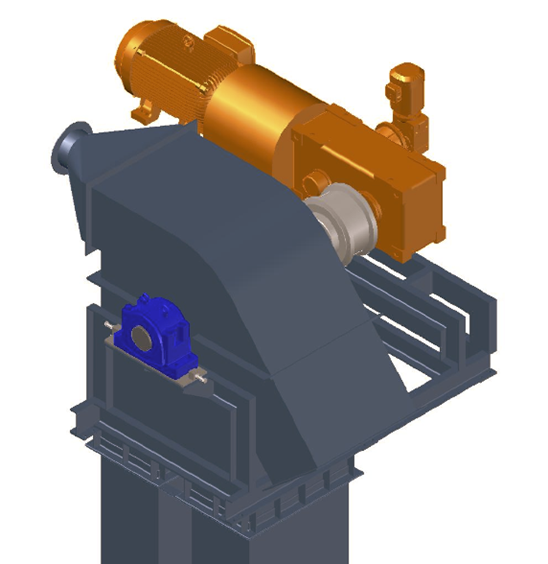

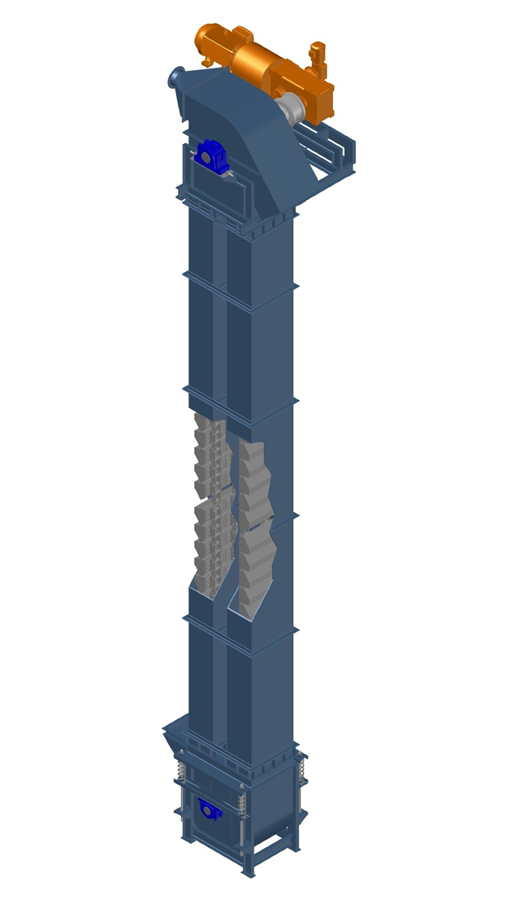

• Bucket Elevators
• Air Slides
• Screw Feeders
• Scrubbers

• Mill Liner Handlers
• Mill Ball Chargers
• Ladle Tilters
• etc.

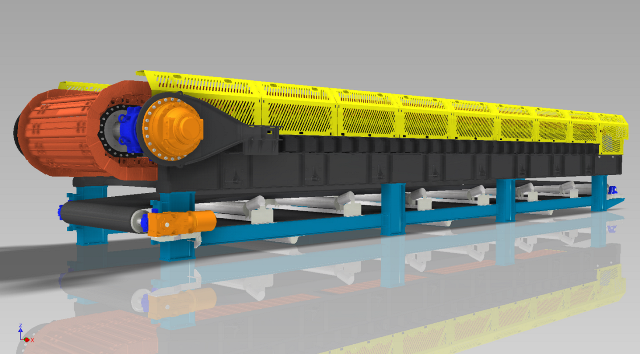

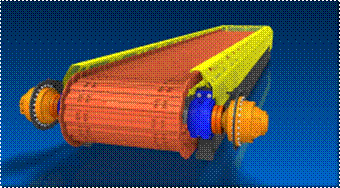

Apron Feeders

ATEQ Apron Feeders are made for handling Run-of-Mine ore, providing positive extraction and controlled feed. They are rugged, safe and reliable. We can provide customized designs for specific applications. Our apron feeders ensure reduced operating and maintenance costs, with the following features:

• Minimized operational height for ease of installation
• Enhanced safety aspects with integrated drive and track guards
• Reduced overall weight for benefits during transport and installation
• Flexible straight or right angle drive arrangements
• Simple and reliable hydraulic or electro-mechanical track drive systems
• Optional variable speed control through inverter drives
• Standard bearing elements designed for 100 000 hour duty
• Spherical bearings on main shafts eliminating misalignment
• Optimized track flights minimizing spillage of fines and build-up
• Impact bars to protect flights under extreme loading conditions
• Sealed bearings on track idlers improve reliability in arduous conditions
• Standard earth moving equipment chain, sprocket and wear components

Download the ATEQ Apron Feeder brochure here.

Please contact ATEQ for your next solution

For more information download the ATEQ Equipment presentation here.

With spillage collection conveyor

With dual hydraulic drive

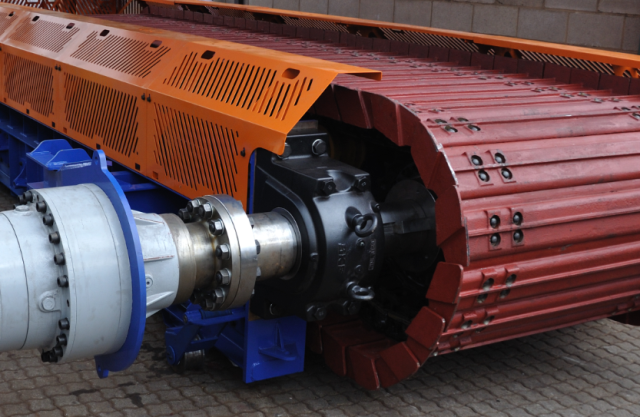

With electromechanical planetary drive and torque arm
